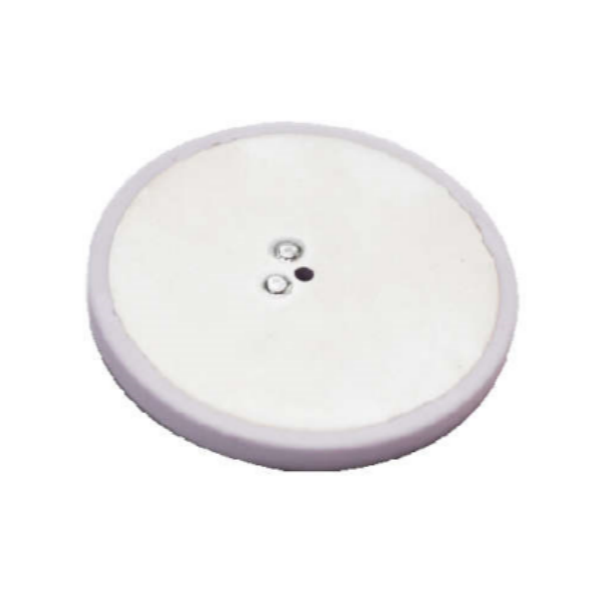

Name: SY-GNSS-012
Date: 2025-06-23 16:17
Ceramic GNSS antennas have high performance, small size, convenient installation, reasonable price, high precision, strong anti-interference ability, high temperature resistance, wear resistance, light weight, small size, high efficiency, low cost, high gain, high sensitivity, and stable operation.
Antenna specifications
Technical requirement Technical index Notes
Frequency Range GPS:L1,GLONASS:G1
Antenna Gain 3dBi @Zenit Live bridge test on 70 * 70mm grounding base plate
 Output VSWR <2.0
Center frequency
Output lmpendance 50Ω
Polarization RHCP
Axis Ratio 2.0:1 Live bridge test on 70 * 70mm grounding base plate
Horizontal Coverage 360°
Work environment
Relative Humidity 95%
Operating Temperature -40~+80℃
Store Temperature -40~+80℃
Structural characteristics
Dimension OD44.5*4mm
