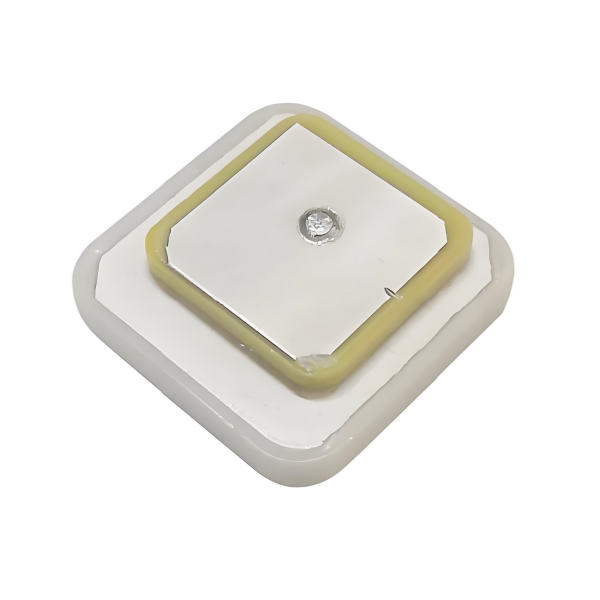

Antenna specifications | ||
Technical requirement | Technical index | Notes |
Frequency Range | GPS:L1,L5 | |
Antenna Gain |
3.5dBi @Zenith(L1) 2.0dBi @Zenith(L5) |
Live bridge test on 70 * 70mm grounding base plate |
Output VSWR | <2.0 |
Center frequency |
Output lmpendance | 50Ω | |
Polarization | RHCP | |
Axis Ratio | ≤5.0 | Live bridge test on 70 * 70mm grounding base plate |
Horizontal Coverage | 360° | |
Work environment | ||
Relative Humidity | 95% | |
Operating Temperature | -40~+80℃ | |
Store Temperature | -40~+80℃ | |
Structural characteristics | ||
Dimension | 25*25*4mm/15*15*4mm |
