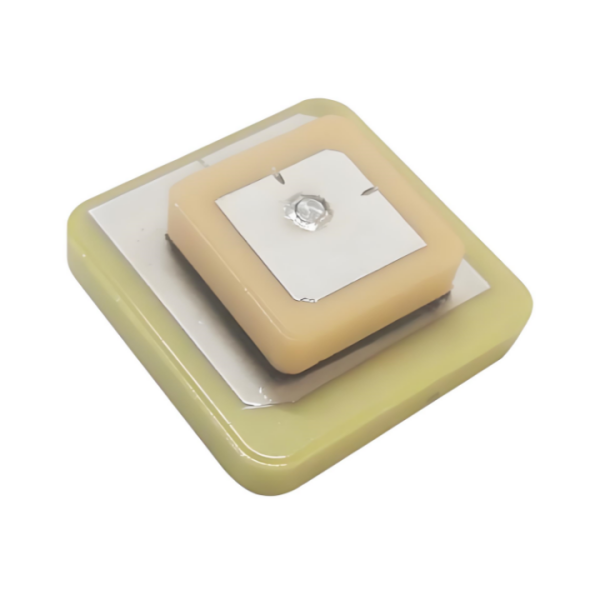

Name: SY-GNSS-008
Date: 2025-06-23 15:41
Antenna specifications
Technical requirement Technical index Notes
Frequency Range GPS:L1,L5
Antenna Gain

0dBi @Zenith(L1)

 -5.0dBi @Zenith(L5)

Live bridge test on 70 * 70mm grounding base plate
 Output VSWR <2.0
Center frequency
Output lmpendance 50Ω
Polarization RHCP
Axis Ratio ≤5.0 Live bridge test on 70 * 70mm grounding base plate
Horizontal Coverage 360°
Work environment
Relative Humidity 95%
Operating Temperature -40~+80℃
Store Temperature -40~+80℃
Structural characteristics
Dimension 25*25*4mm/15*15*4mm
